DK Custom

Touring Tank Lift Kits

Price:
$99

filler

Size: 1 inch
Stock:
Only 2 units left
Quantity:

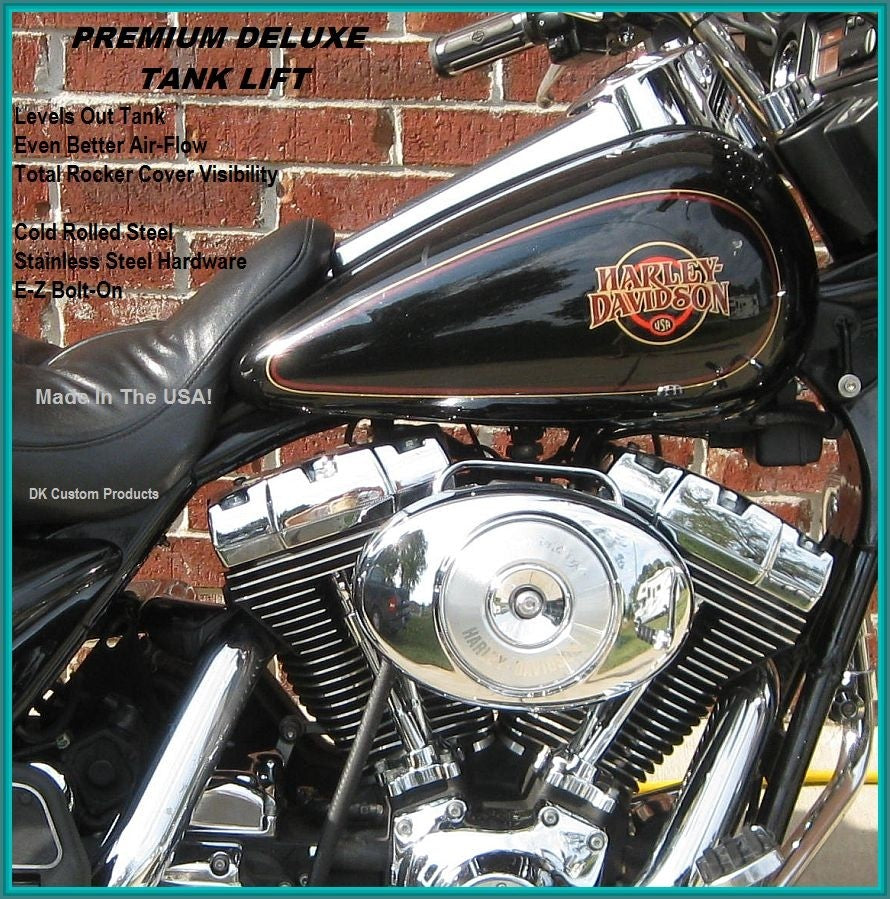

PREMIUM CNC BILLET TANK LIFT KIT - Choose between 1, 1.5, 2, 2.5 or 3" lift...... with or without the Deluxe Option add on that also lifts the back of the tank. We only carry the lift  in Black Powder Coat Finish. To order the Deluxe option to also lift the back of the tank to level it out click HERE

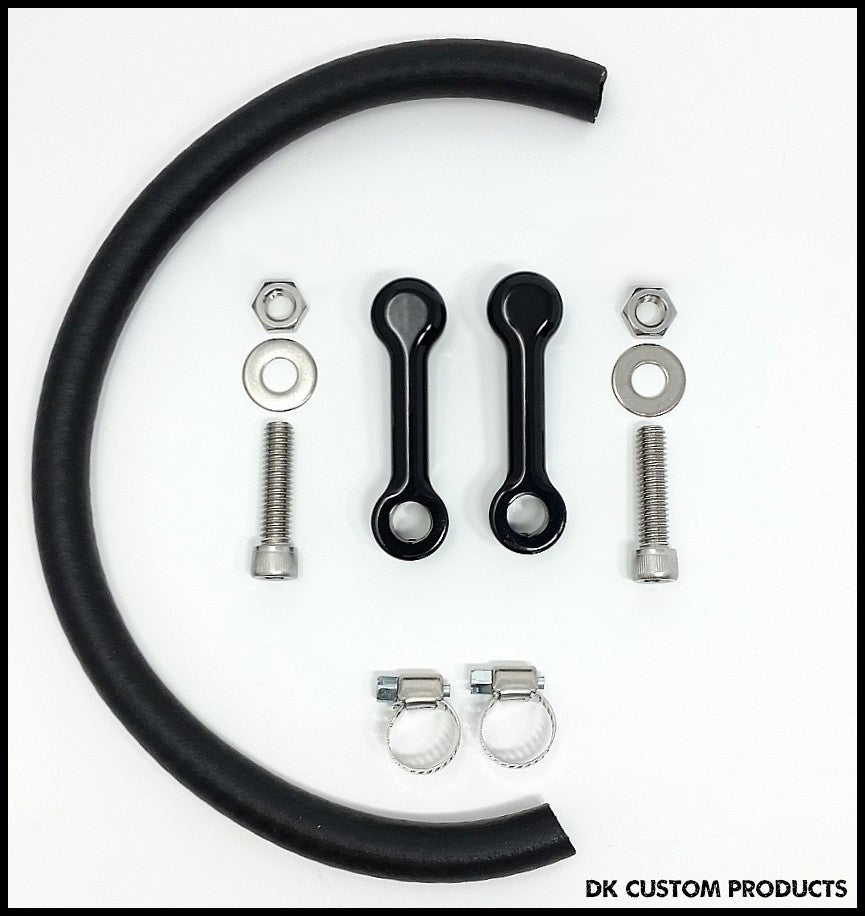

PREMIUM CNC BILLET TANK LIFT KIT - BLACK

FITS HARLEY-DAVIDSON TOURING MODELS 1999-UP

BAGGERS & TRIKES

 MADE IN THE USA By DK Custom Products

FEATURES & SPECS:

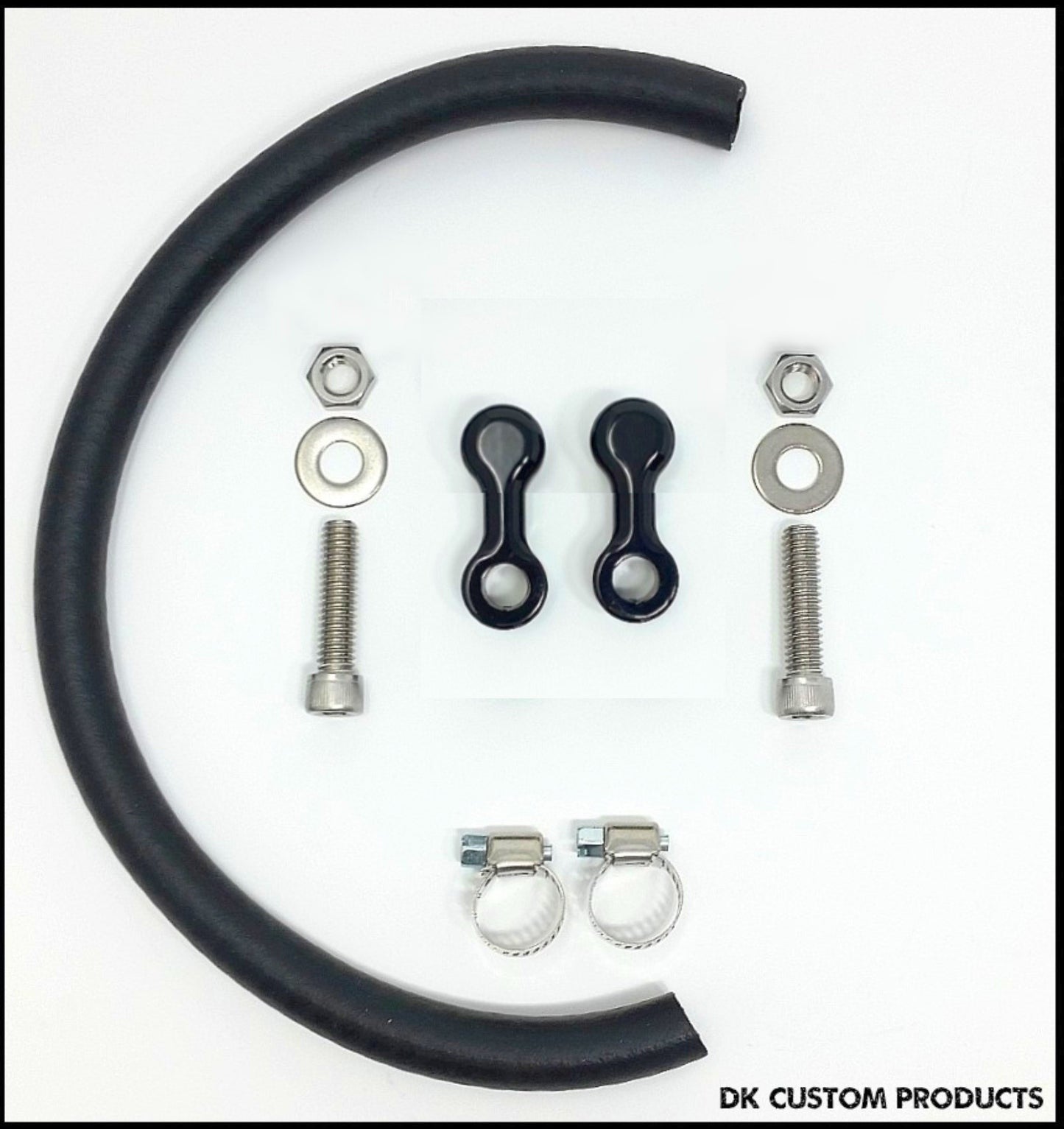

  • Made from 6061 Billet Aluminum

  • All Stainless Steel Hardware

  • Includes Thread Protector Caps

  • Durable Black Powder Coat Finish

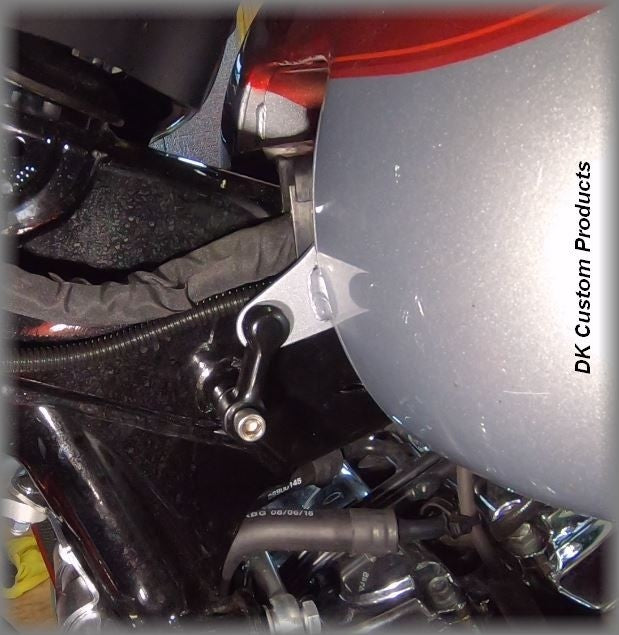

  • E-Z BOLT-ON INSTALL - DOES NOT REQUIRE REMOVAL OF TANK

  • Instruction Sheet Included

This is the TOP OF THE LINE Tank Lift Kit. DK product line includes: 1", 1.5", 2",  2.5" and 3 inch rise kits in BLACK...they are different (purpose-made & patented)...no extra metal or holes for multiple fitments, the lines match the lines of the bike.

These are precision cut on DK's CNC machine from 6061 Billet Aluminum.

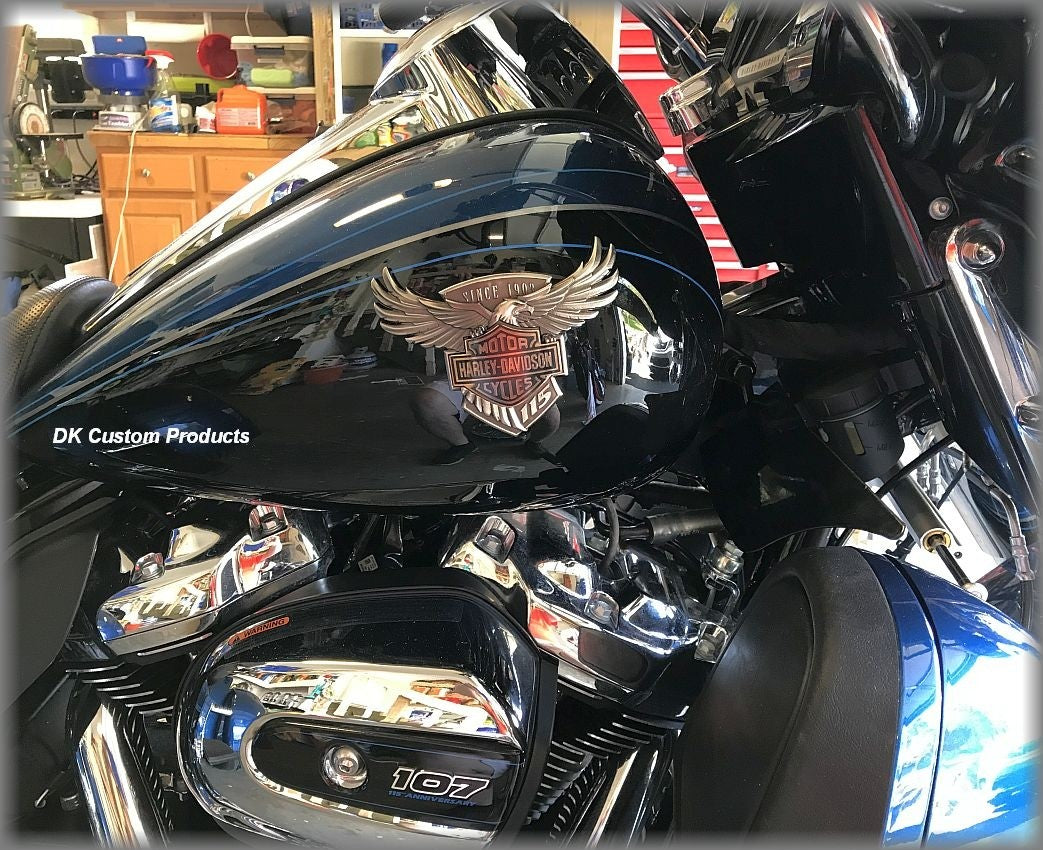

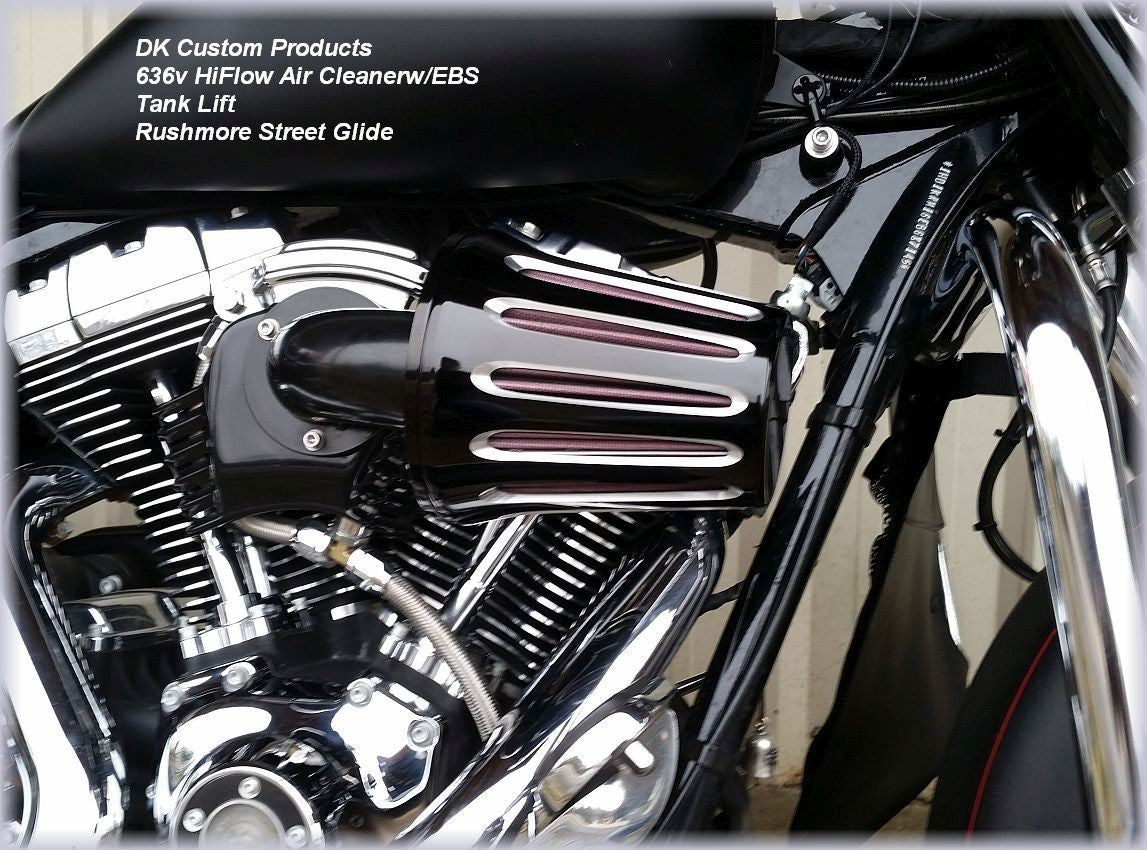

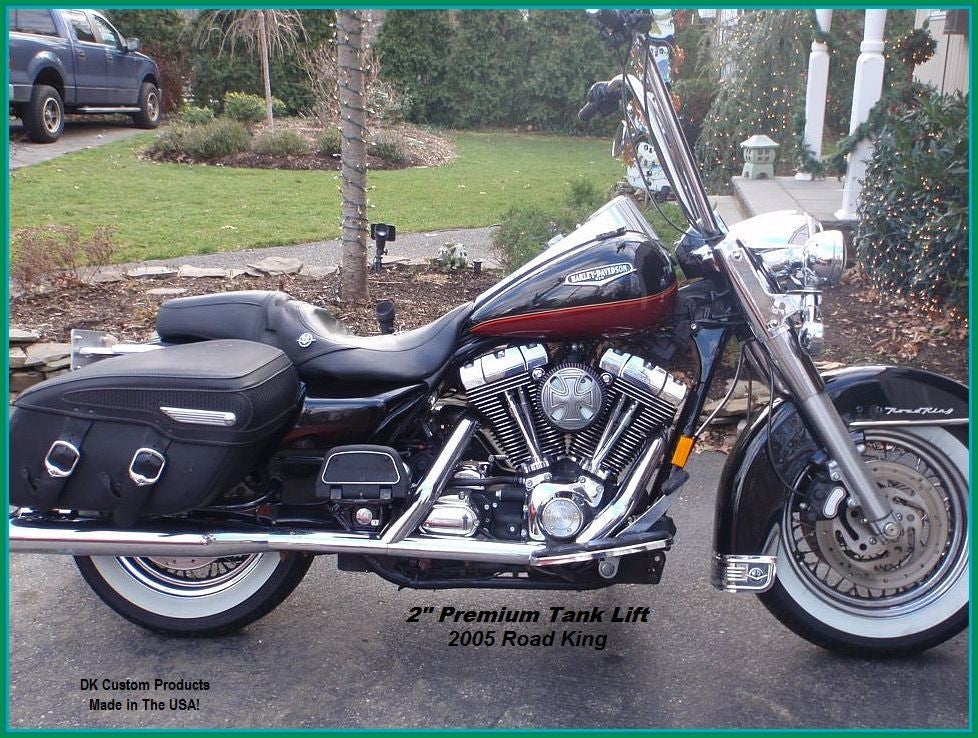

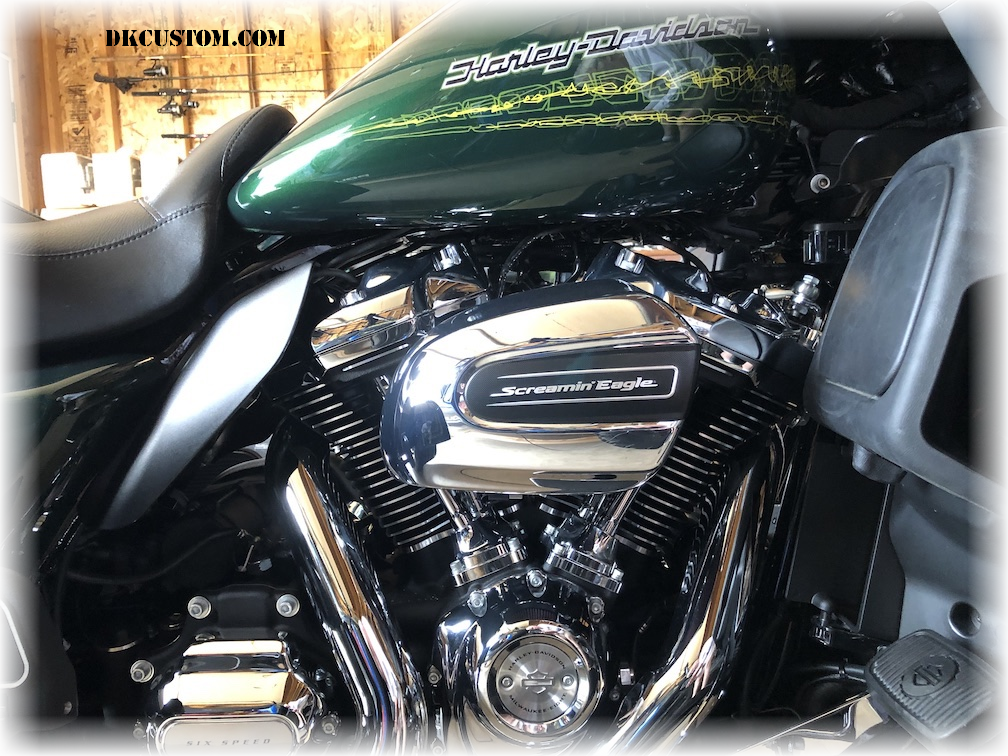

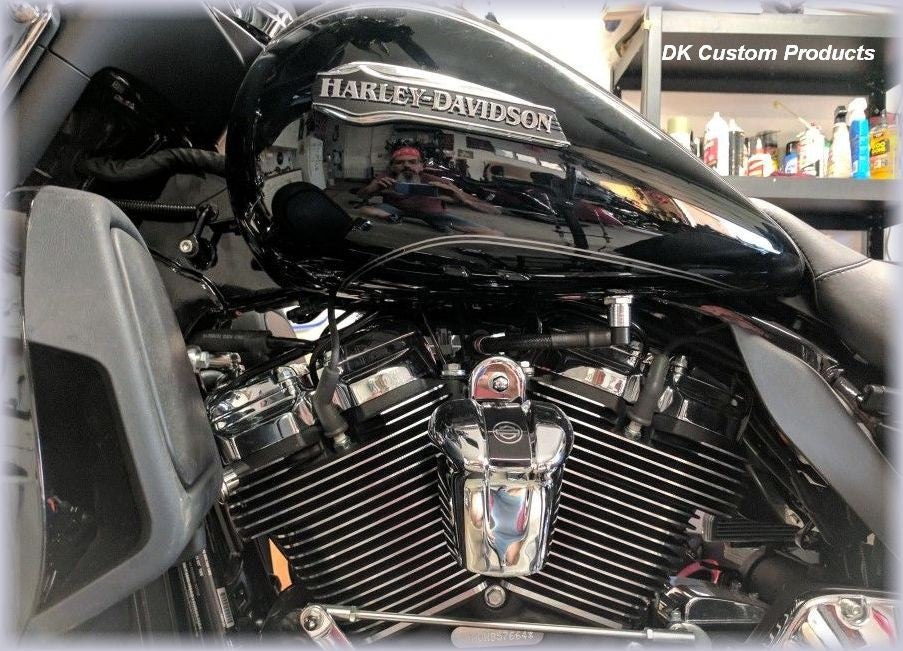

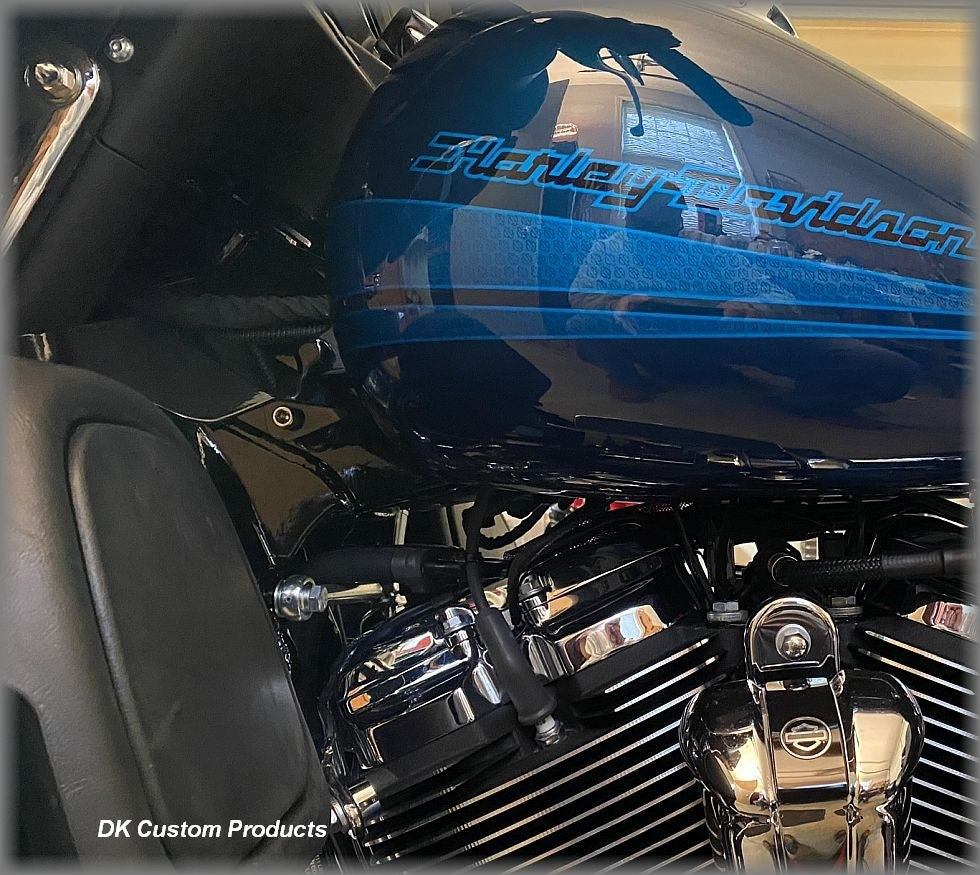

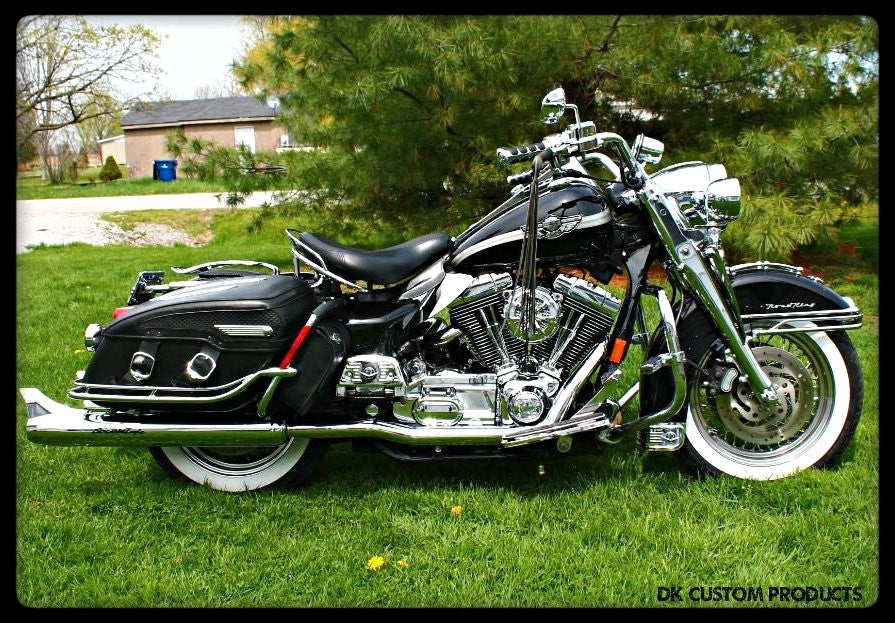

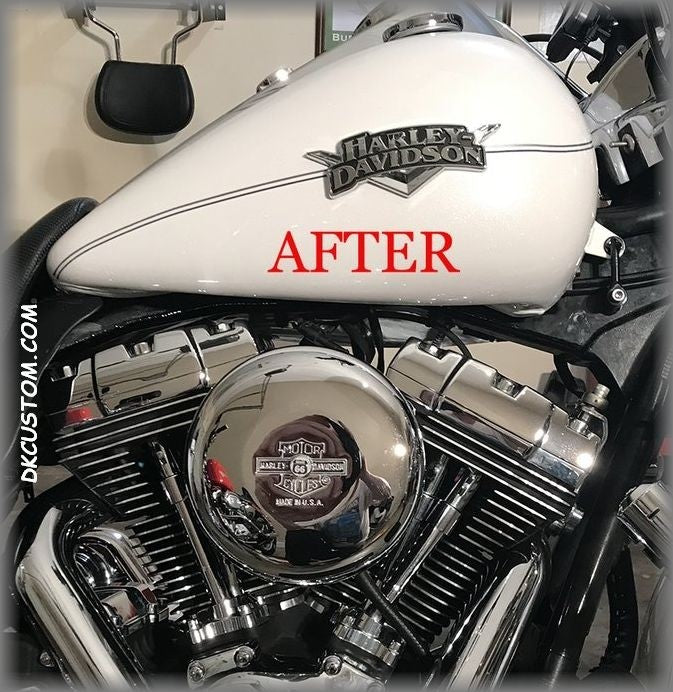

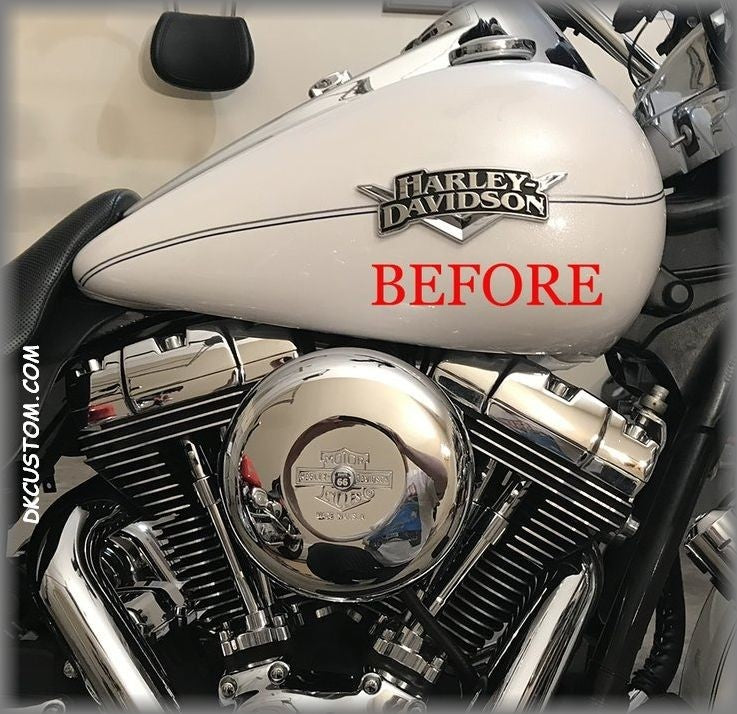

Look at all the pictures...the BEFORE & AFTER pictures show what a difference this easy-to-install kit makes!

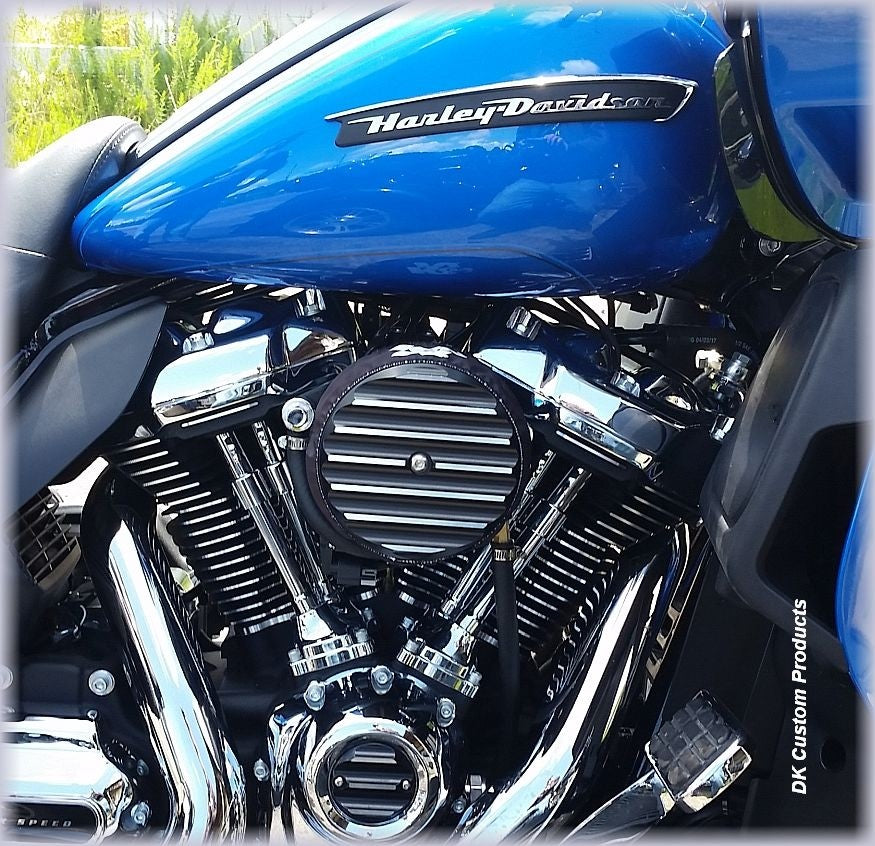

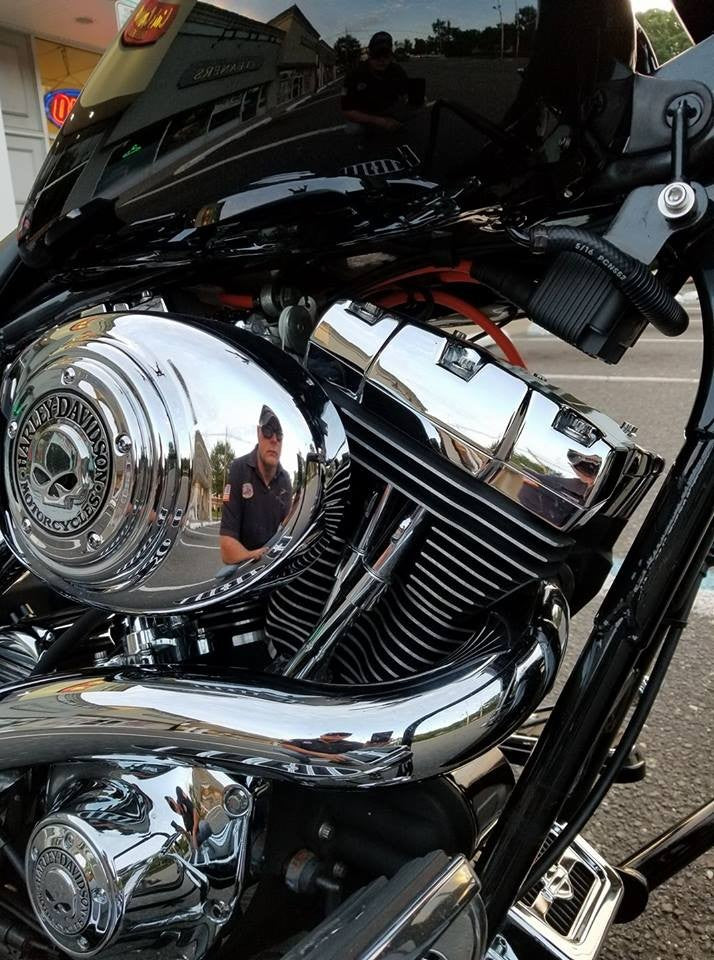

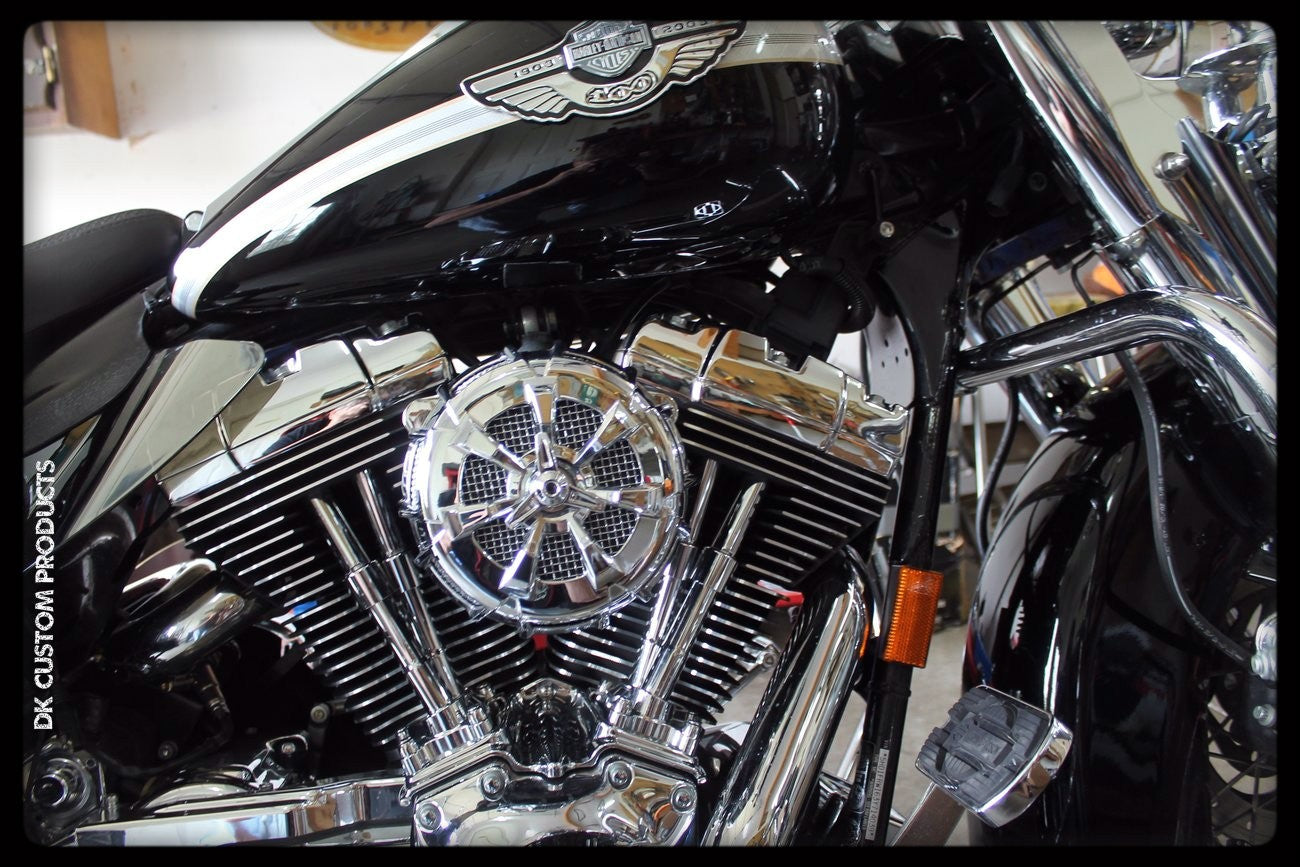

Now you can see your Rocker Covers! Without this Kit all that chrome is Hidden!

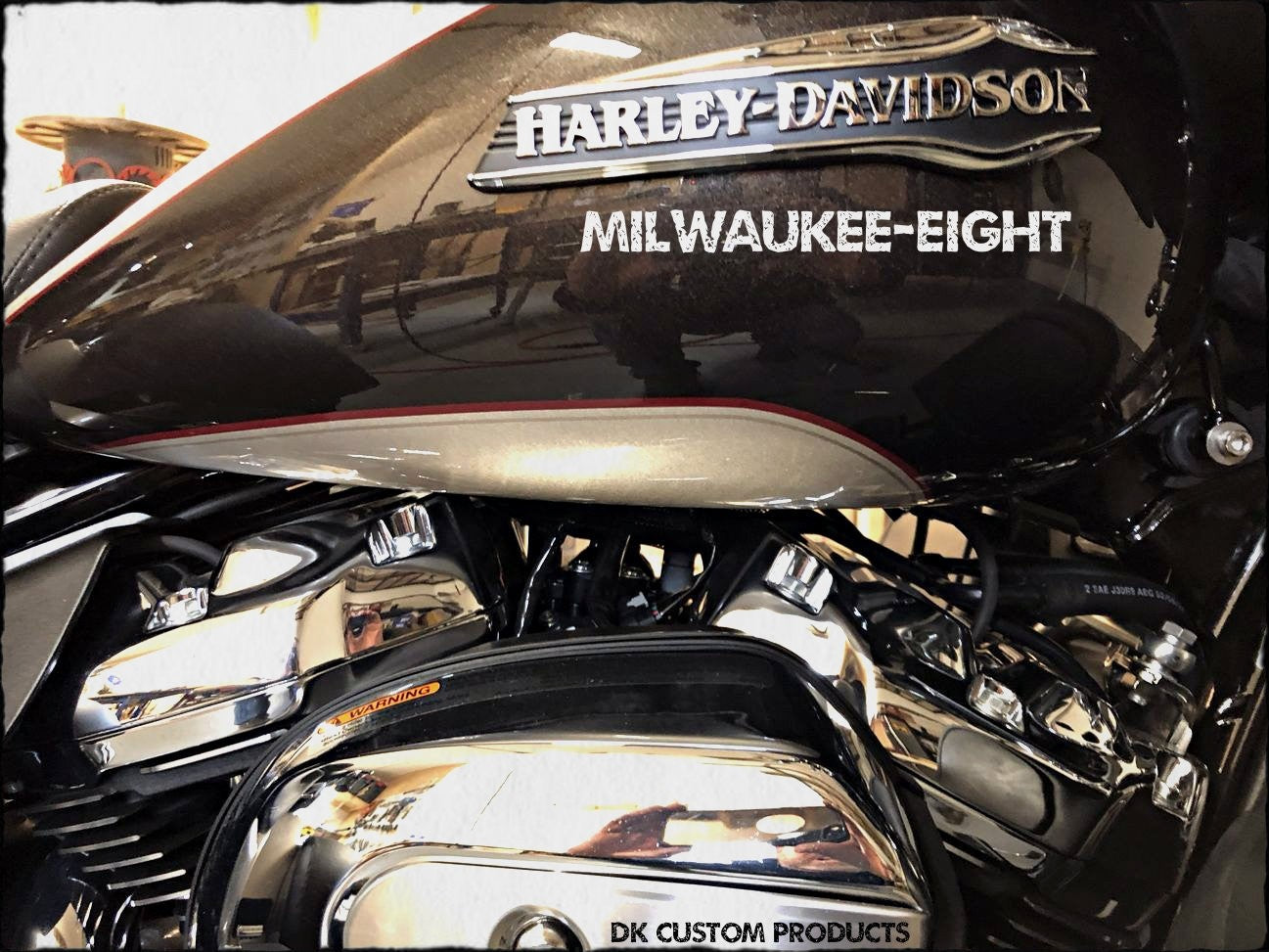

This is the way the Motor Company is now mounting the M8 Softail Tanks, better line, better cooling, less buffeting.

Worried about running hot? This Kit Provides Better Air-Flow - Engine Runs Cooler


This is an EASY install - 10 to 20 minutes!

Tank Lift Instructions

Fitment:

1999-2007 - All sizes can fit (1, 1.5, 2, 2.5, & 3 inch)

2008-Up have a 6 gallon tank and only the 1", 1.5" and sometimes the 2" will fit these years.

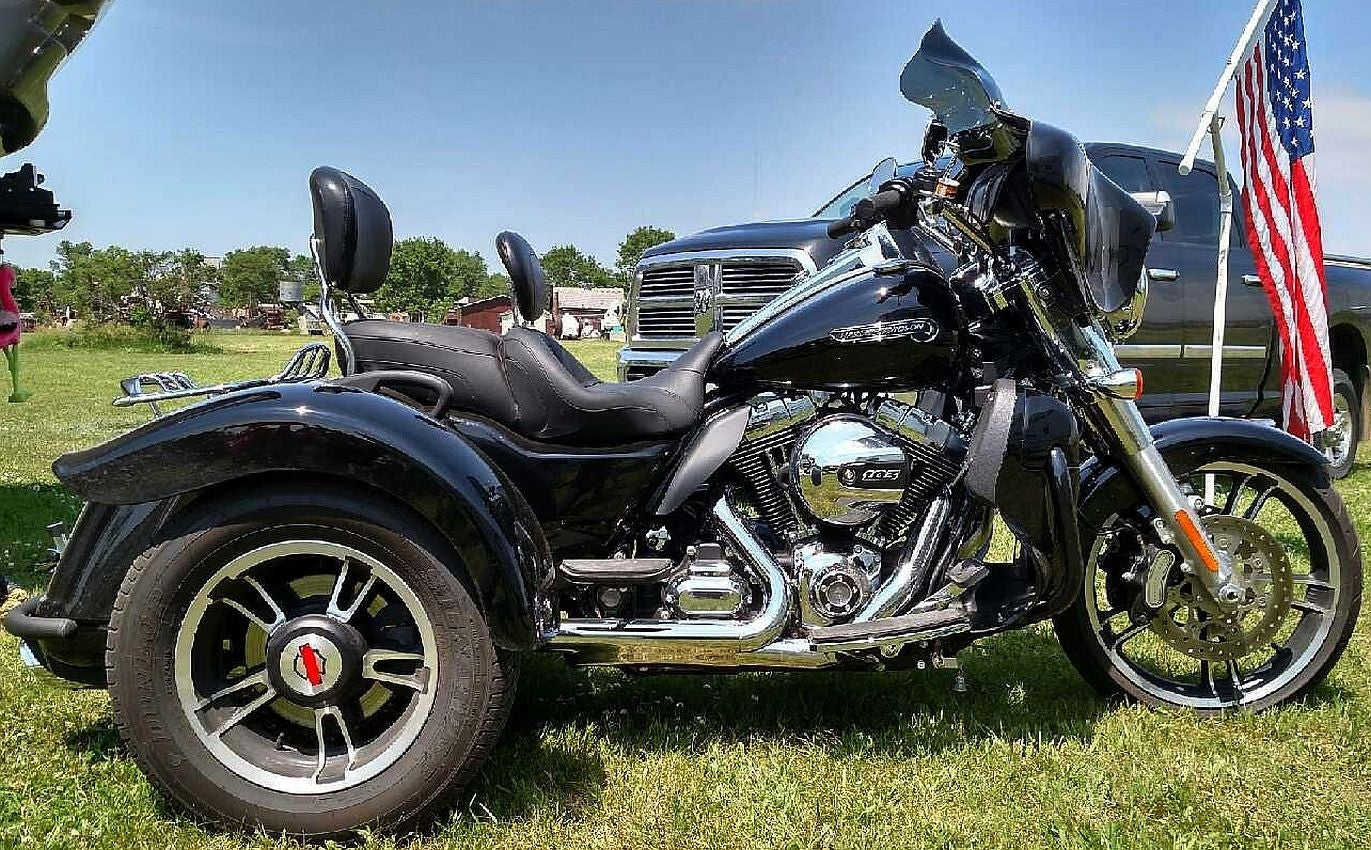

Road King ~ Road Glide ~ Street Glide ~ Electra Glide ~ Ultra ~ Tri-Glide ~Freewheeler

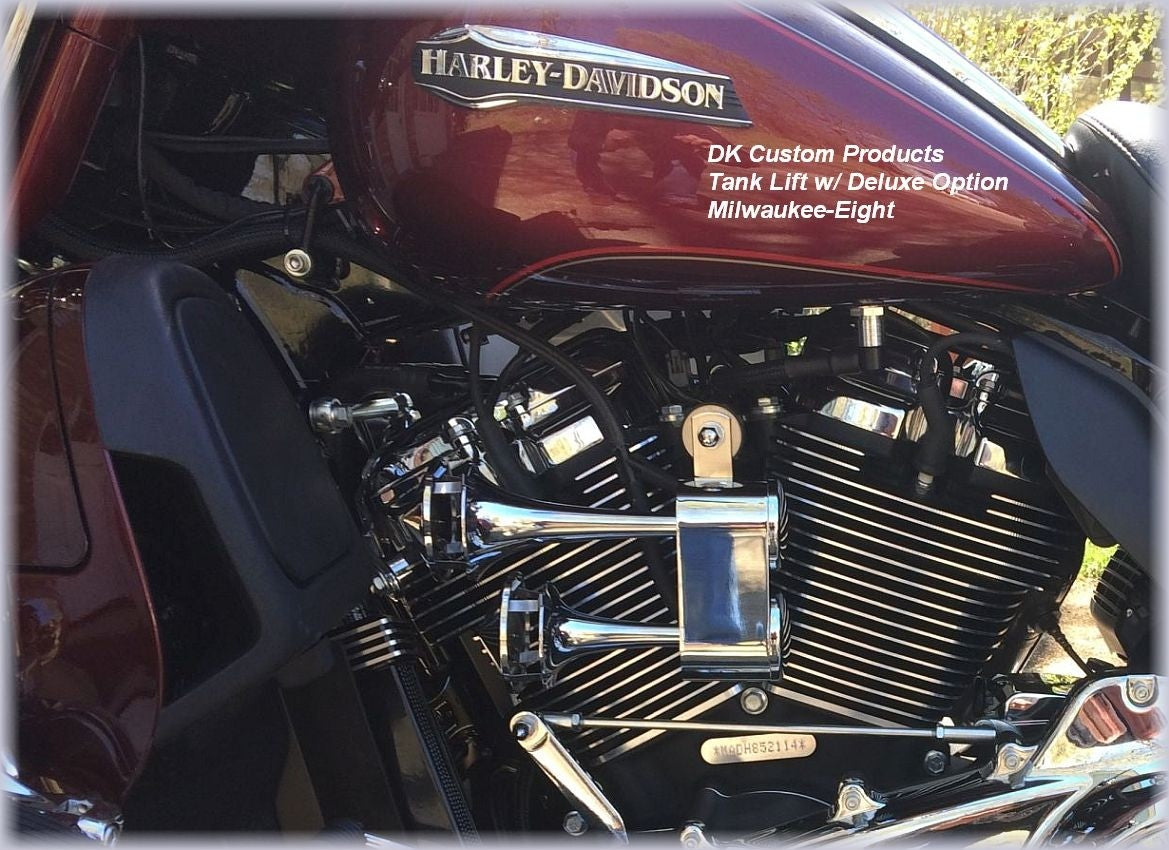

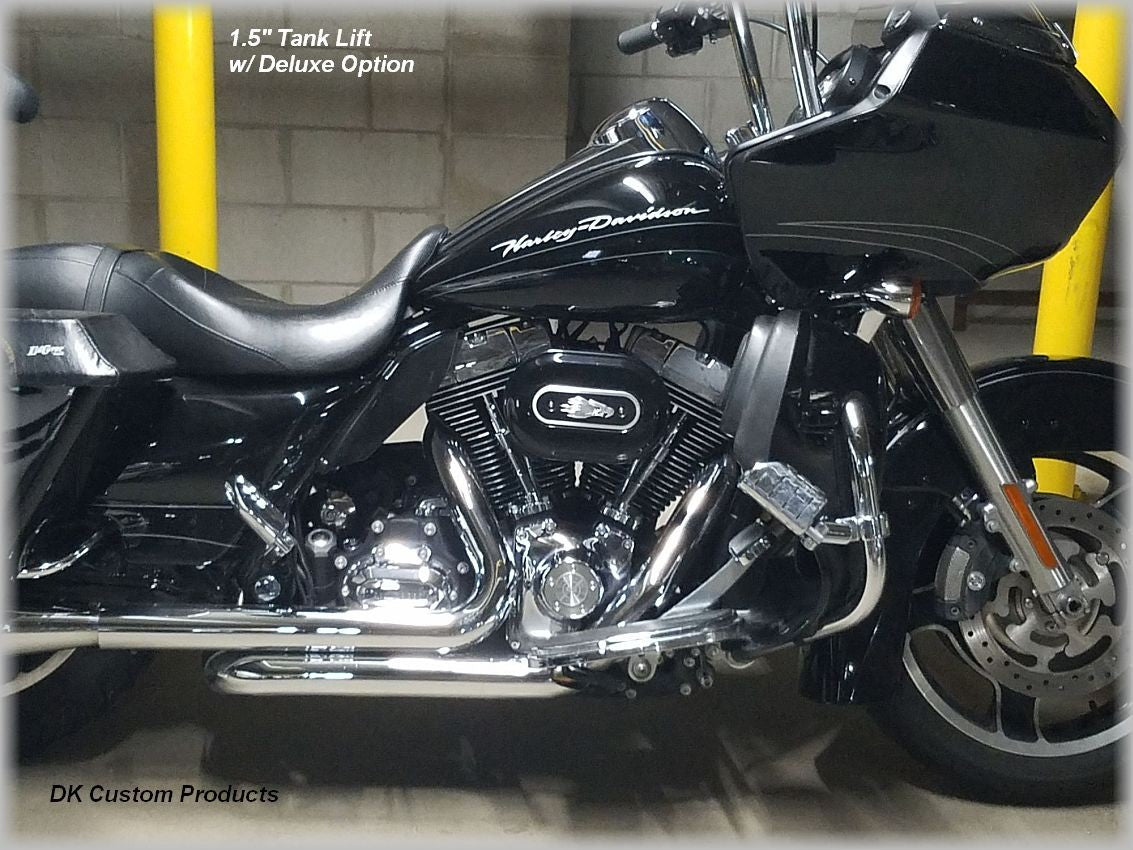

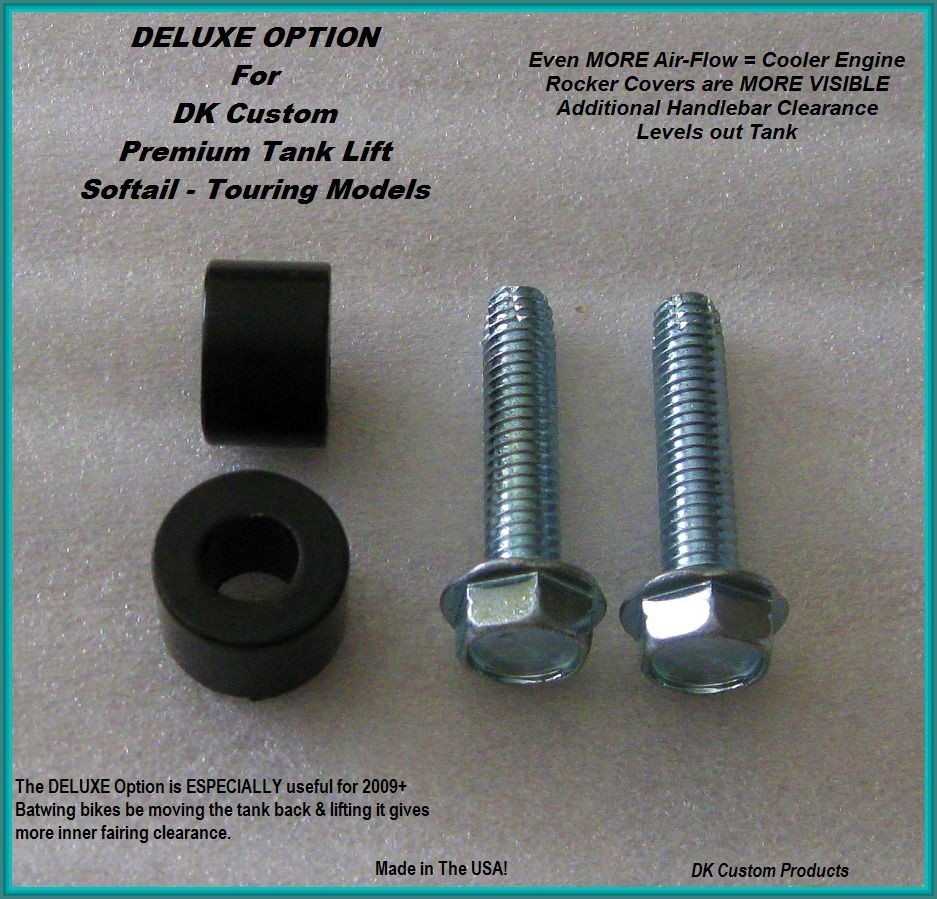

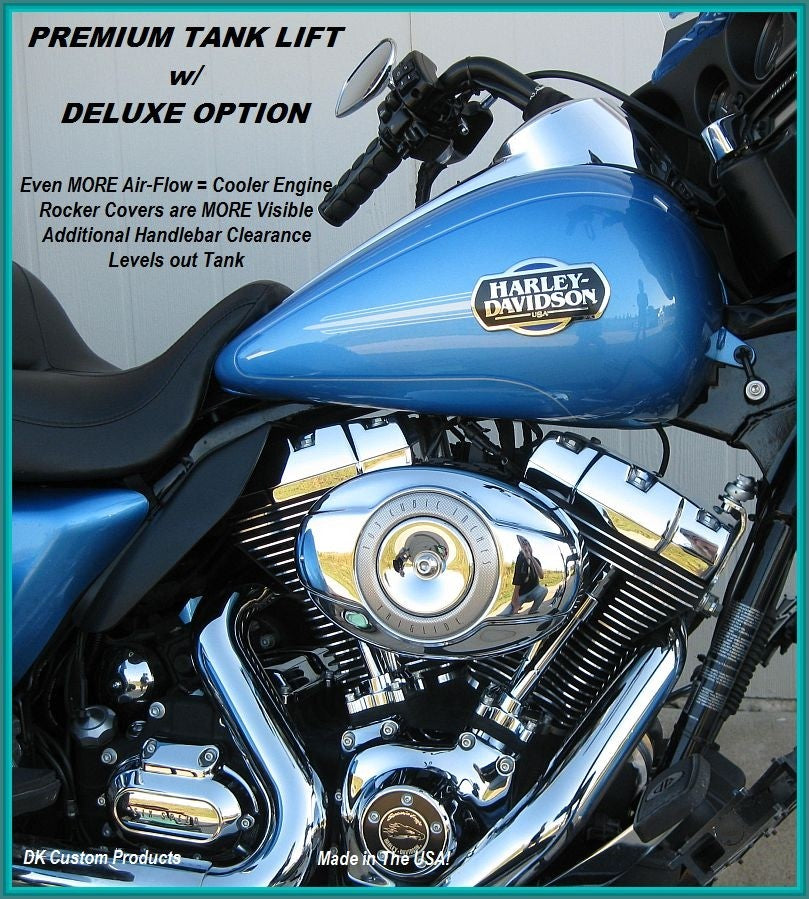

The DELUXE Option is ESPECIALLY useful for 2008+ batwing bikes because moving the tank back & lifting the rear of it gives more inner fairing clearance.  Full details on this option are HERE.

IMPORTANT FITMENT NOTES:
What we label a 1" Tank Lift is actually 1 1/8" lift, the reason for this is to accommodate machining and hardware fitment.

Because of small variances in how Harley welds stand-offs & tank ears, also because of variances in where the batwing fairing is bolted on, the 1" Tank Lift can be very useful in making sure there is clearance at full turn lock.

Please make sure this mod does not interfere with any components on your bike - like  handlebars, turn signals, custom trees, etc.  You don't want to end up with a dented tank!  Check for clearance before ordering. Checking for clearance not only allows you to insure fitment, it also allows you to see which size will look best with your bike.
We are NOT responsible for any damage done to your bike because of the kit.

It is easy to check for clearance:

1. With bike on kickstand, take the bolt out of the front of your tank.

2. Loosen (do not remove) the bolt(s) at the rear of your tank.

3. Turn your handlebars all the way to the left and raise the tank up your desired lift height to check for clearance issues.

4. Turn your handlebars all the way to the right and raise the tank up your desired lift height to check for clearance issues.

Be careful when lifting your tank, you do not want to hit against something (forks, handlebars, trees, blinkers, etc.) when checking for clearance.

 "The best and cleanest (Tank Lift Kit) we've seen are the ones DK Custom manufactures."  Green Mount Road Harley-Davidson

U.S. Patent D650,316 S

Click on the link below for an article on everything you need to know about Lifting your Tank.

-Will if fit?

-Will I lose fuel capacity?

-What is the purpose of a Tank Lift?

-Does it reduce Wind Buffeting?

What is a Tank Lift and why do I need one?

Tank Lift Instructions

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
MwR
excellent vendor

ordering was easy and delivered promptly
thanks

W
Wolfe Hromotka
1.5 “ tank lift on FLHP

With the DK Customs 1.5” tank lift in place it gives the tank a tear drop look as well the slope matches the slope of the hard bag lids giving the Road King a squat down Street Glide look. The added air flow over the rocker boxes make a noticeable difference in engine heat, less heat felt on one’s legs.
Not only does the bike look much nicer when you can see the engine, a person can now clean the rocker boxes , even with big hands. All that is quite an upgrade for the few dollars spent, the real bonus for M8 owners is you know longer have to remove the fuel tank to change spark plugs, easy access to 3 and the right rear requires un-bolting the rear of the tank and blocking it with a 3” board and you have ample room to access the remaining plug. My first attempt at the plug exchange took a mere 20 minutes. Install of the lift kit is 15 -20 minutes. Should be up near the top of the ten must have upgrades on your bagger.

C
Colin Anthony
Great Service

Great customer service.
